Flat Submersible Cables

Technical Specification Chart

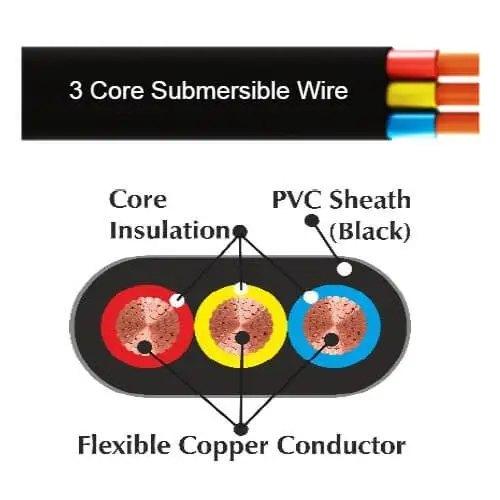

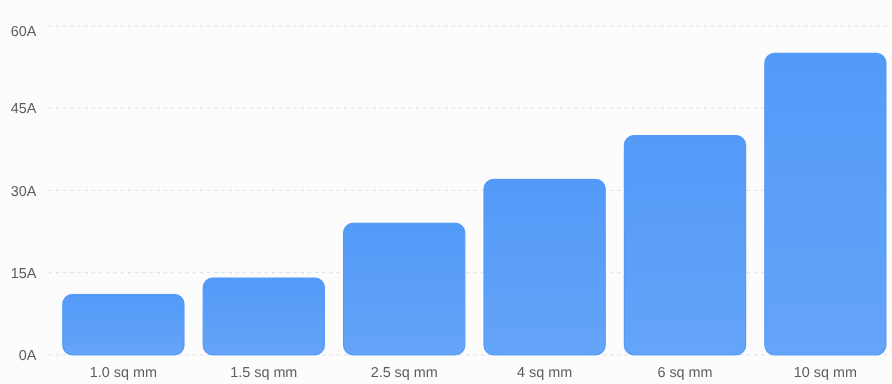

3 Core Flat Submersible Cable Current Capacity

Typical current carrying capacity of PVC insulated flat submersible cables used for water pump applications.

Size	Conductor Construction	Insulation Thickness	Approx Overall Size	Typical Use
1.0 sq mm	14/0.30 mm	0.7 mm	12 × 4 mm	Small pumps
1.5 sq mm	22/0.30 mm	0.8 mm	13 × 4.5 mm	Domestic pumps
2.5 sq mm	36/0.30 mm	0.8 mm	15 × 5 mm	Borewell pumps
4 sq mm	56/0.30 mm	1.0 mm	17 × 6 mm	Agricultural pumps
6 sq mm	84/0.30 mm	1.0 mm	20 × 7 mm	Heavy duty pumps
10 sq mm	142/0.30 mm	1.2 mm	25 × 8 mm	Industrial pumps
